16 AWG 2 Conductor Shielded Sound & Security Cable - 500 Feet M60699
Sale price
$39.50
Regular price $135.13
Skip to product information
This Plenum rated cable has been designed specifically for use intercom, sound, alarm and security circuits, and It is approved for installation per NEC (National Electric Code) Articles FPLP/760, CMP 800, CL3P, and CL2P725. Though approved for air plenum, it can be used anywhere a stationary control circuit is needed, up to 300 Volts. It is not rated for outdoor use or direct burial.

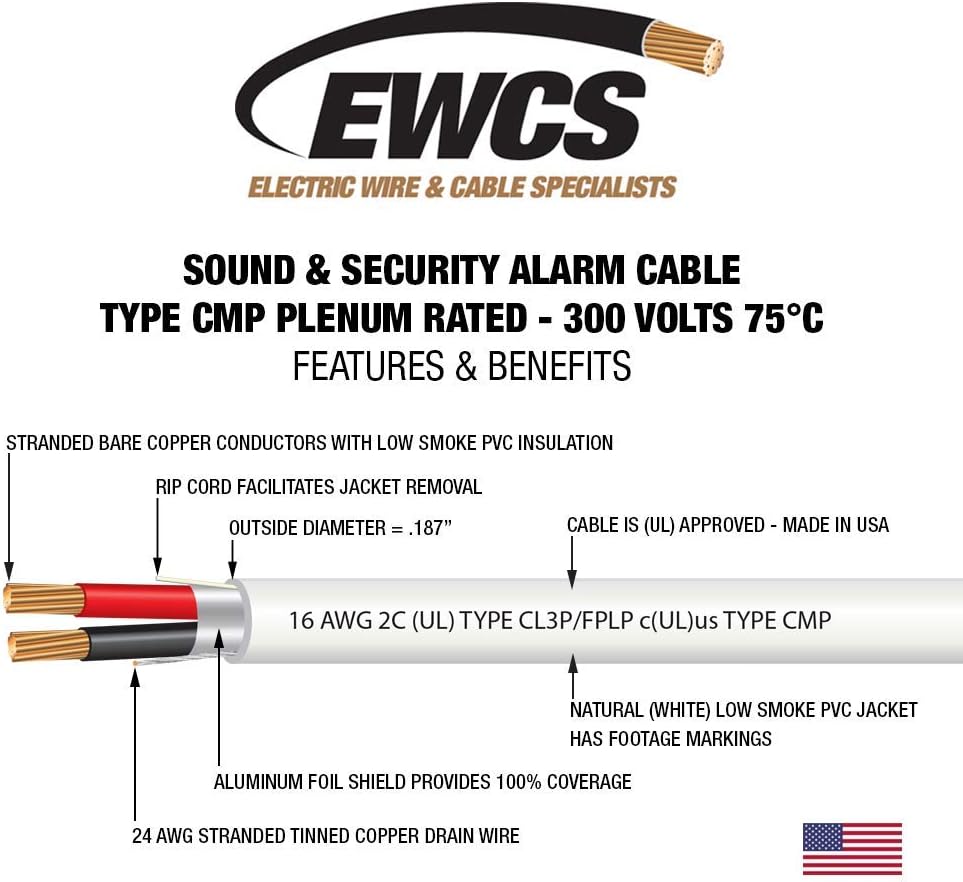

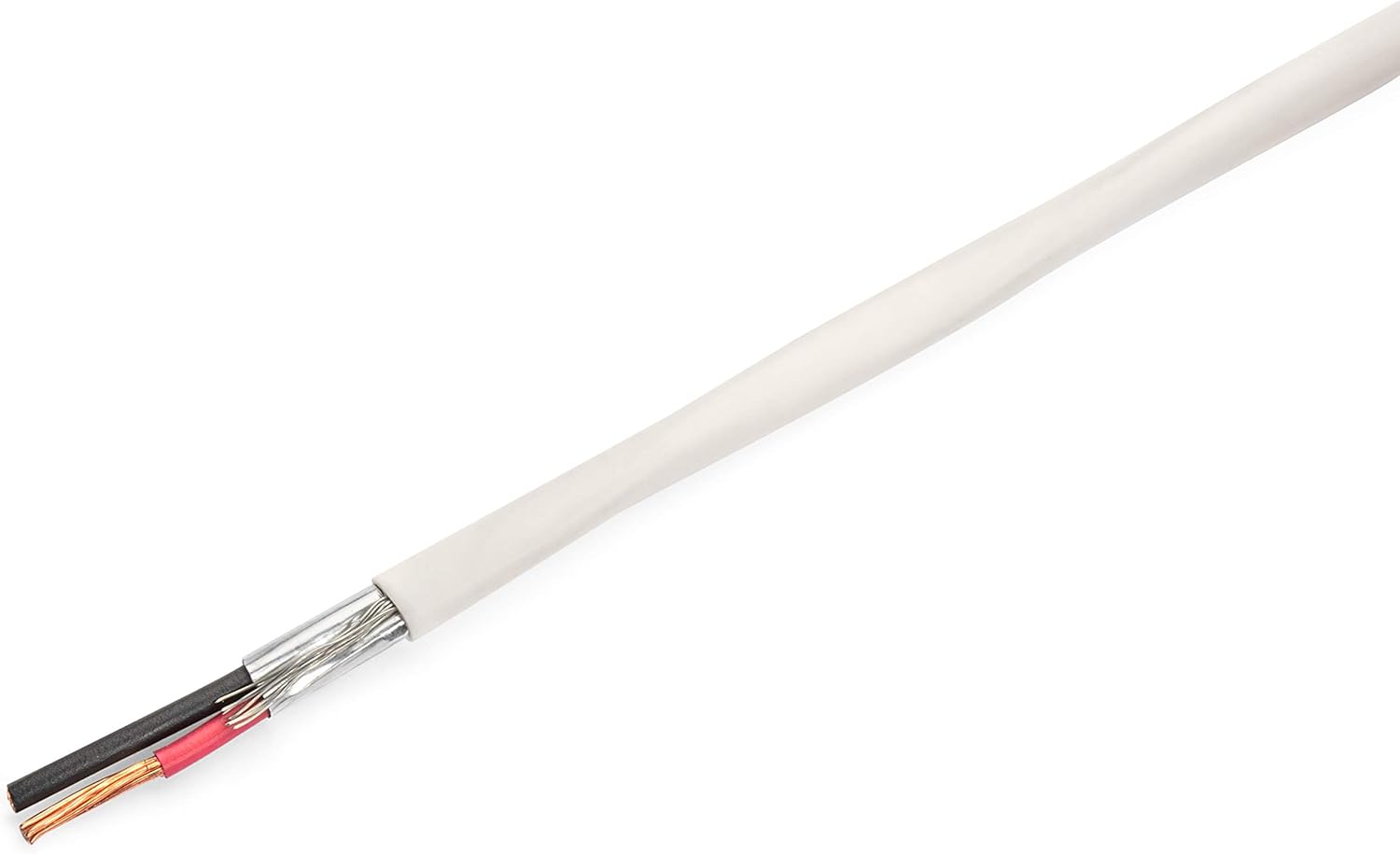

This cable consists of two 16 AWG 7/Strand 100% bare copper conductors color coded Red & Black. It is rated for 300 volts 75C. It is shielded with a 100% aluminum mylar shield and the drain wire is 24 AWG stranded tinned copper

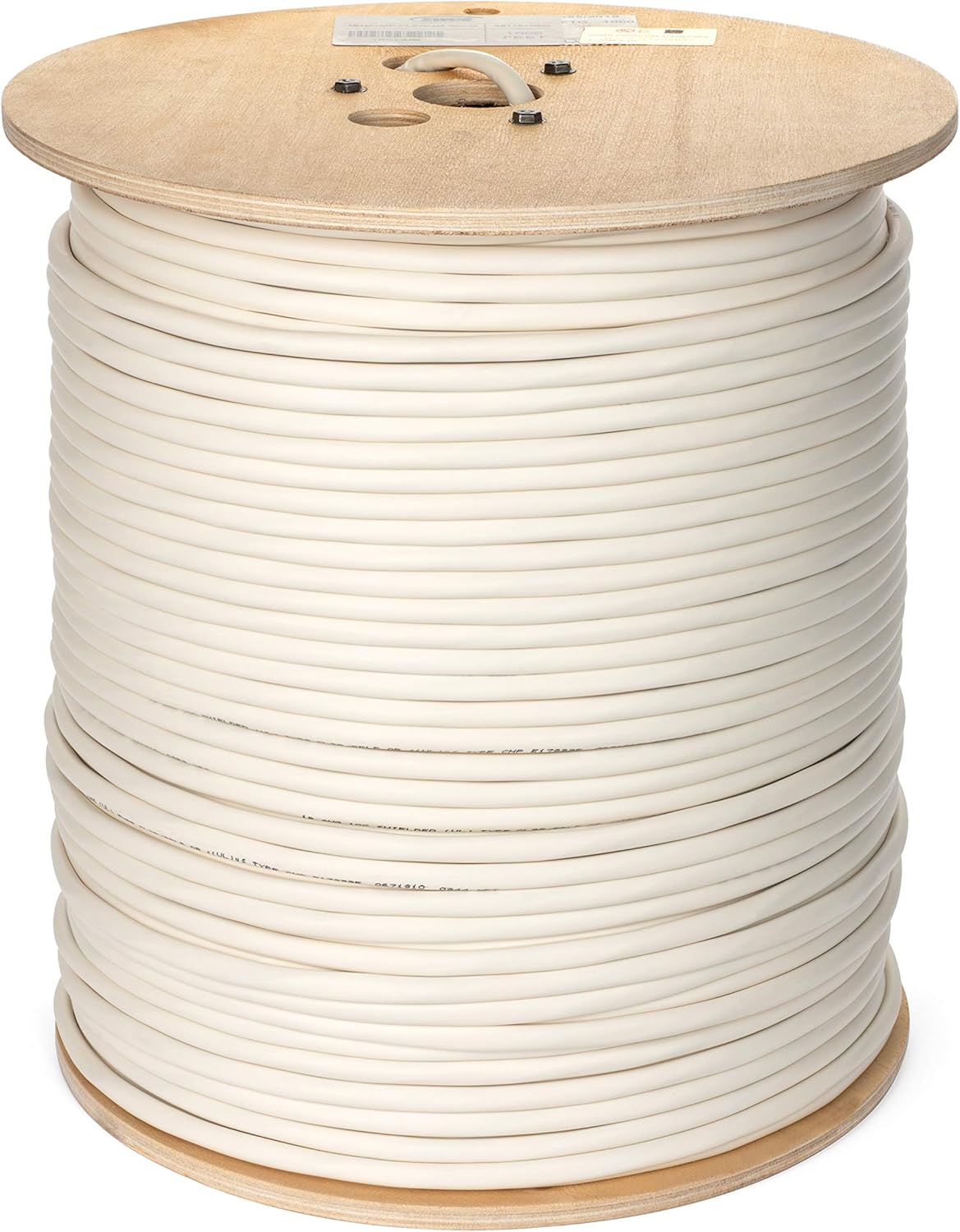

The cable is covered with a (UL) approved Low Smoke White PVC jacket. Footage markings have been added to the jacket so you can always determine the amount remaining on the spool. The cable ships on a 12” diameter plywood spool.
This cable has a diameter of .187” and weighs 30# per 1000 Feet. The 16 AWG 7/Stand bare copper conductors are made with 100% pure copper. They are insulated with color coded low smoke PVC.
All EWCS products are proudly made in the USA! Have a job that needs another conductor or pair count or requires a different length? EWCS offers a selection of hundreds of electronic & fire alarm cables, rated Riser or Plenum in non-shielded or shielded configurations
Tools & Home Improvement Electrical Electrical Wire
16 AWG 2 Conductor Shielded Sound & Security Cable - 500 Feet M60699
Sale price
$39.50
Regular price $135.13
Shipping calculated at checkout.
This Plenum rated cable has been designed specifically for use intercom, sound, alarm and security circuits, and It is approved for installation per NEC (National Electric Code) Articles FPLP/760, CMP 800, CL3P, and CL2P725. Though approved for air plenum, it can be used anywhere a stationary control circuit is needed, up to 300 Volts. It is not rated for outdoor use or direct burial.
This cable consists of two 16 AWG 7/Strand 100% bare copper conductors color coded Red & Black. It is rated for 300 volts 75C. It is shielded with a 100% aluminum mylar shield and the drain wire is 24 AWG stranded tinned copper
The cable is covered with a (UL) approved Low Smoke White PVC jacket. Footage markings have been added to the jacket so you can always determine the amount remaining on the spool. The cable ships on a 12” diameter plywood spool.
This cable has a diameter of .187” and weighs 30# per 1000 Feet. The 16 AWG 7/Stand bare copper conductors are made with 100% pure copper. They are insulated with color coded low smoke PVC.
All EWCS products are proudly made in the USA! Have a job that needs another conductor or pair count or requires a different length? EWCS offers a selection of hundreds of electronic & fire alarm cables, rated Riser or Plenum in non-shielded or shielded configurations

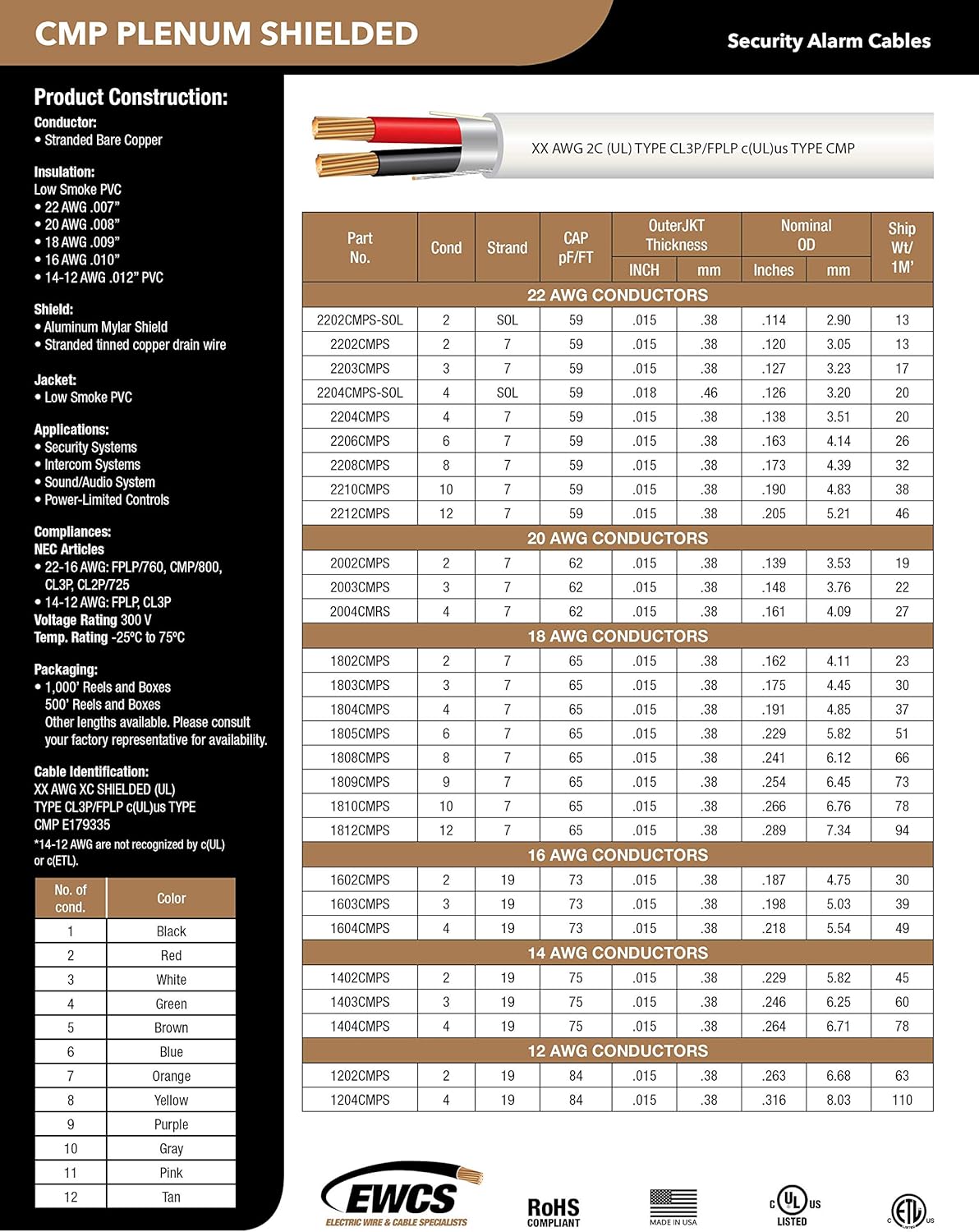

| 22 AWG 2/C Str CMR Riser Rated Shielded Sound & Security Cable | 22 AWG 4/C Str CMP Plenum Rated Shielded Sound & Security Cable | 18 AWG 3/C Str CMP Plenum Rated Shielded Sound & Security Cable | 18 AWG 2/C Str CMP Plenum Rated Shielded Sound & Security Cable | 16 AWG 2/C Str CMP Plenum Rated Shielded Sound & Security Cable | |
|---|---|---|---|---|---|
| Gauge | 22AWG | 22 AWG | 18 AWG | 18 AWG | 14 AWG |
| Length | 1000 | 1000 | 1000 | 1000 | 1000 |
| Conductors | 2 | 4 | 3 | 2 | 2 |
| Drain Wire | ✓ | ✓ | ✓ | ✓ | ✓ |
