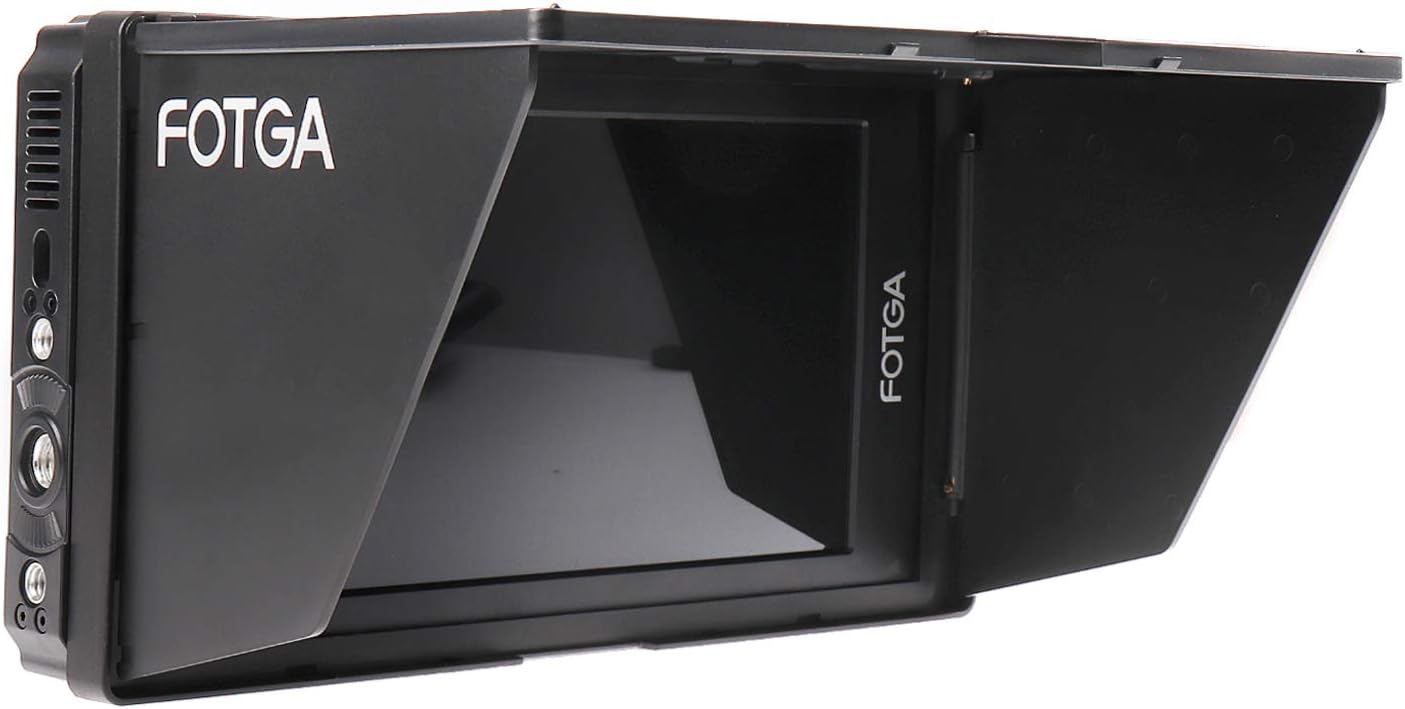

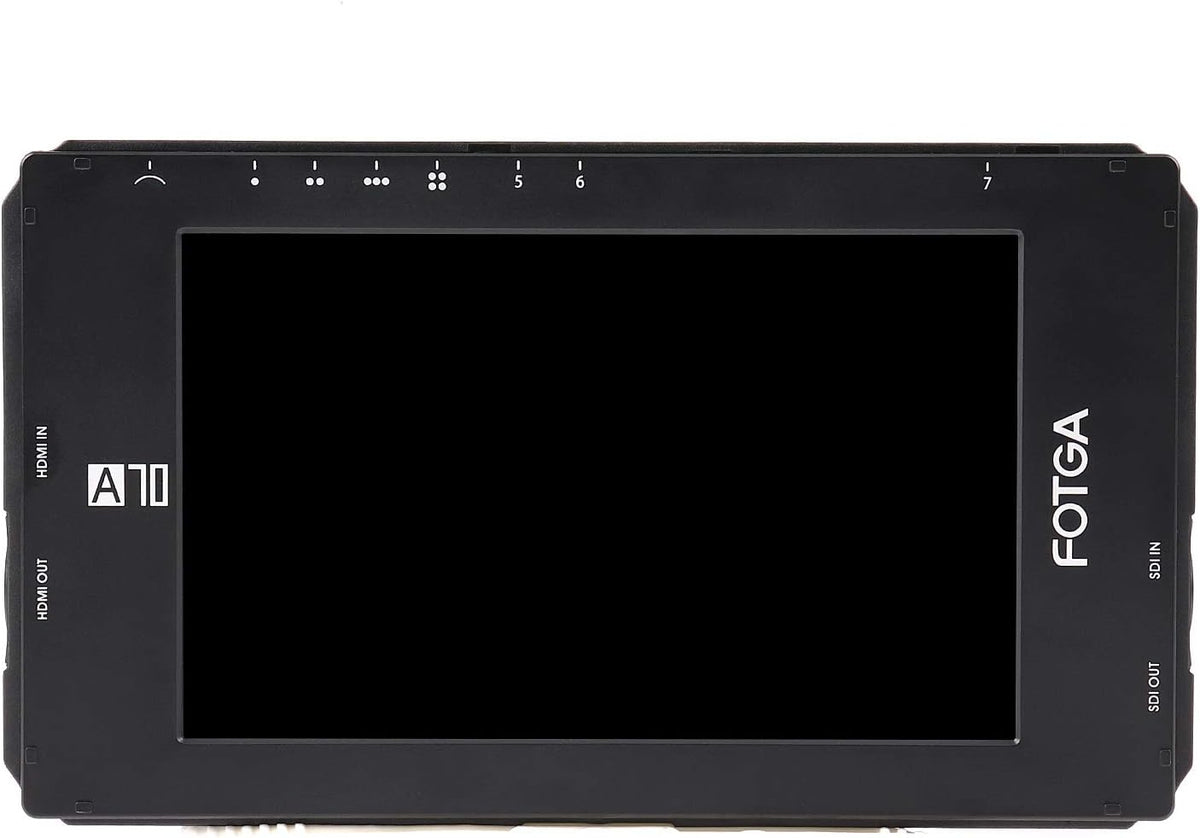

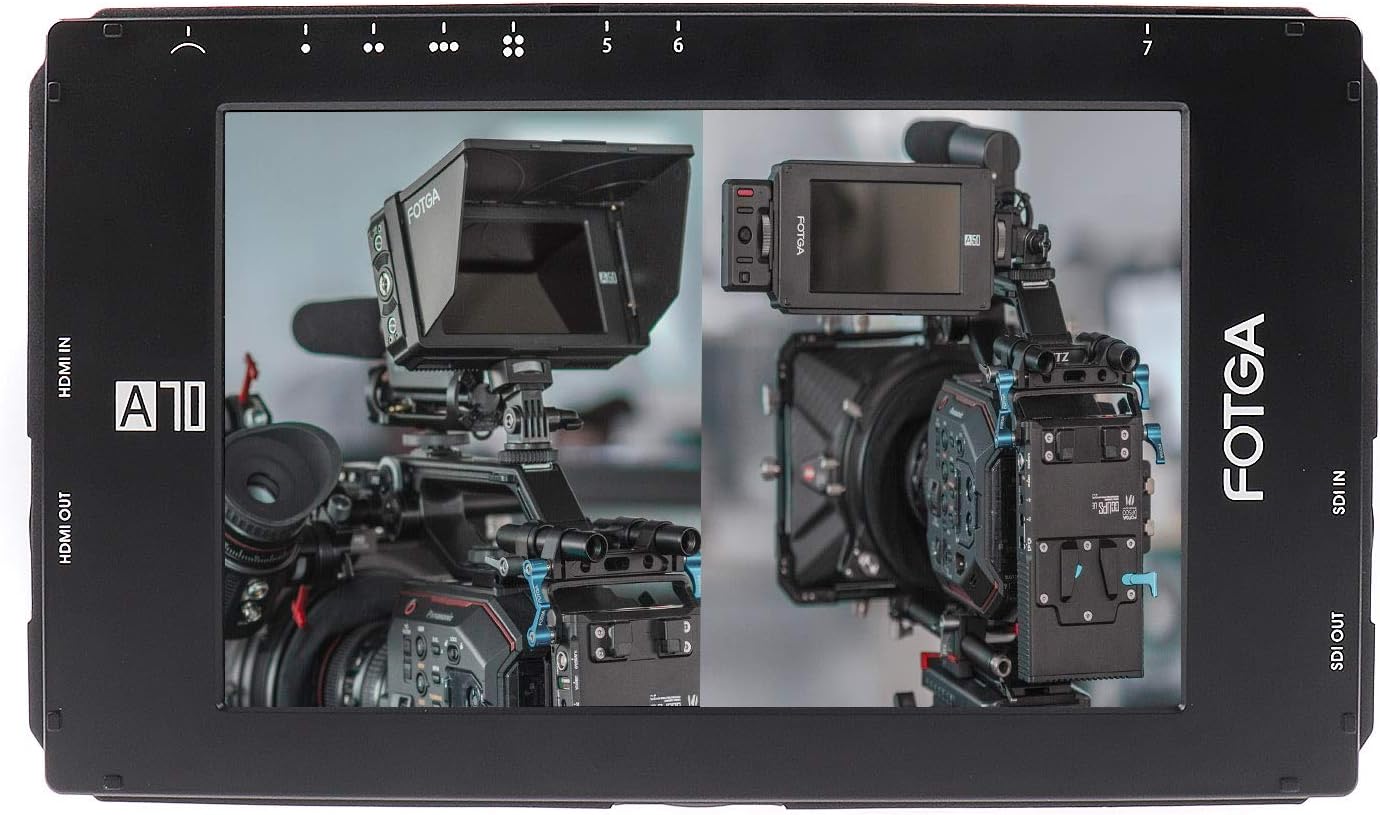

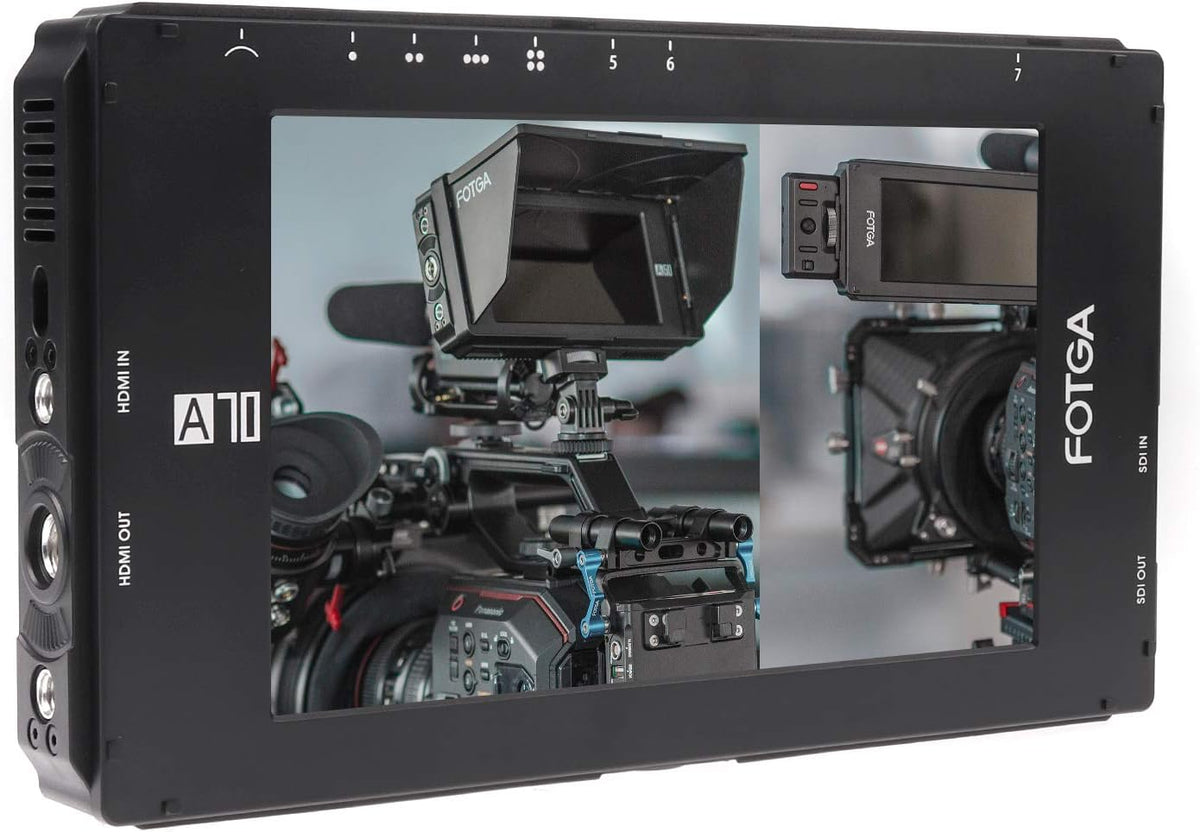

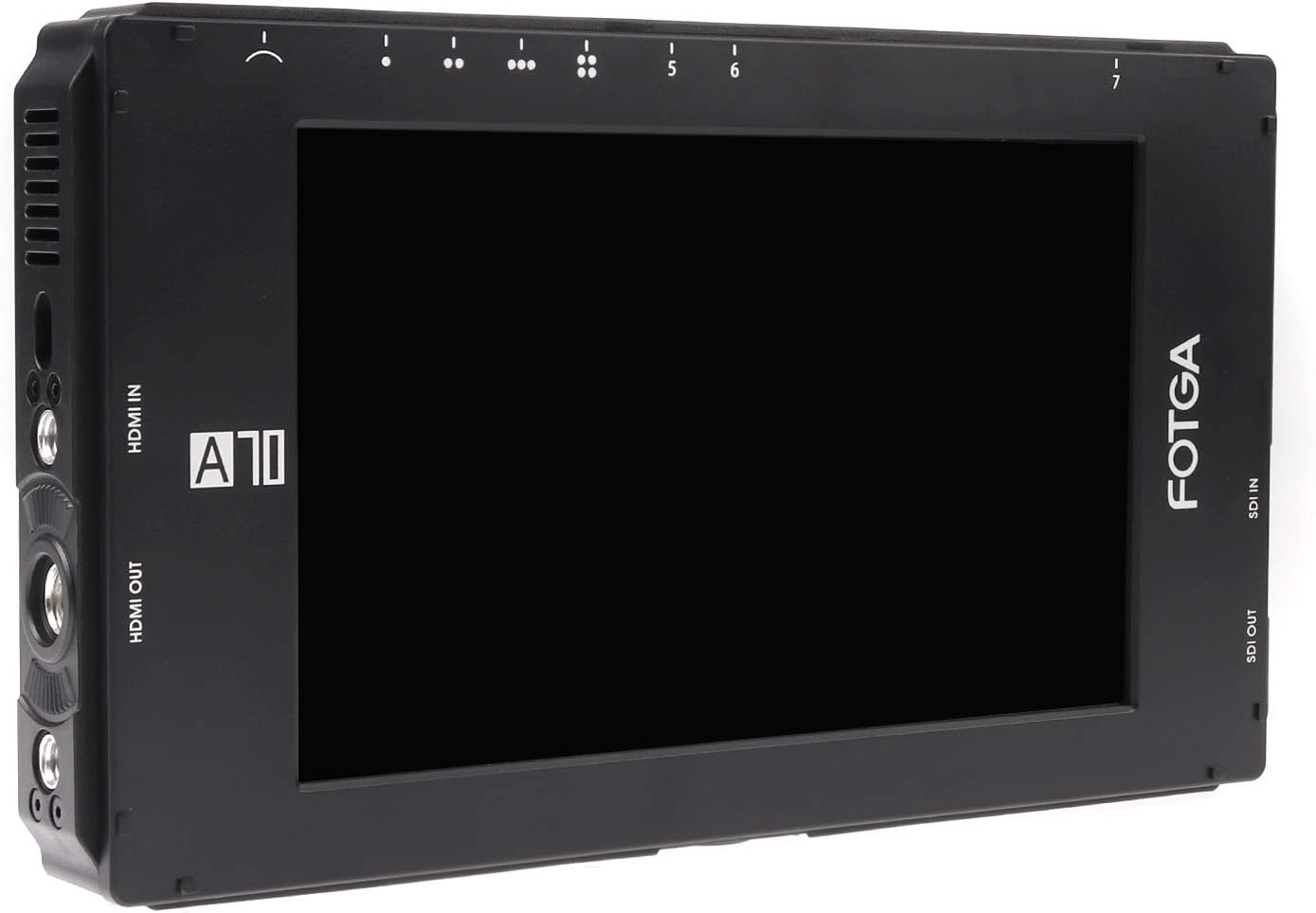

7 Inch Full HD IPS On-Camera Field Monitor with HDMI 4K Input/Output C11218
7 Inch Full HD IPS On-Camera Field Monitor with HDMI 4K Input/Output C11218
This A70 series Professional on-camera monitor is made of aviation aluminum and high-strength engineering plastics.Lightweight but strong.comes with silent operation button to facilitate your operation.support shortcut button setting.
It supports HDMI 4K input/output.(No SDI input/output for this model A70) .3.5mm headphone and loudspeaker output.Compatible with almost all cameras and camcorders. USB port for firmware upgrade.Multiple connecting holes (1/4',3/8' ,M6 and cold shoe connector)
Screen Size: 7 Inch.Screen type: Wide Color Gamut with IPS display.High resolution : 1920x1080.Brightness: 450cd/m2. Contrast Ratio: 1200:1 . Wide viewing angle: 178 degree.
The monitor is designed with Dual battery compartment for NP-F NP-FM/QM batteries,and this would extend your working time greatly. You can also use LP-E6 battery (battery plate for LP-E6 need to buy separately).When power by NP-F or LP-E6 battery or a dummy battery,there is also a battery output for power your camera directly from monitor.
There are 4 models of A70 series for option: A70 (Standard),A70T (Touch Screen),A70TL (Touch Screen+3D LUT),A70TLS (Touch Screen+3D LUT+3G SDI). Choosing the very one according to your need,and A70 series field monitot will be a good help for your work.

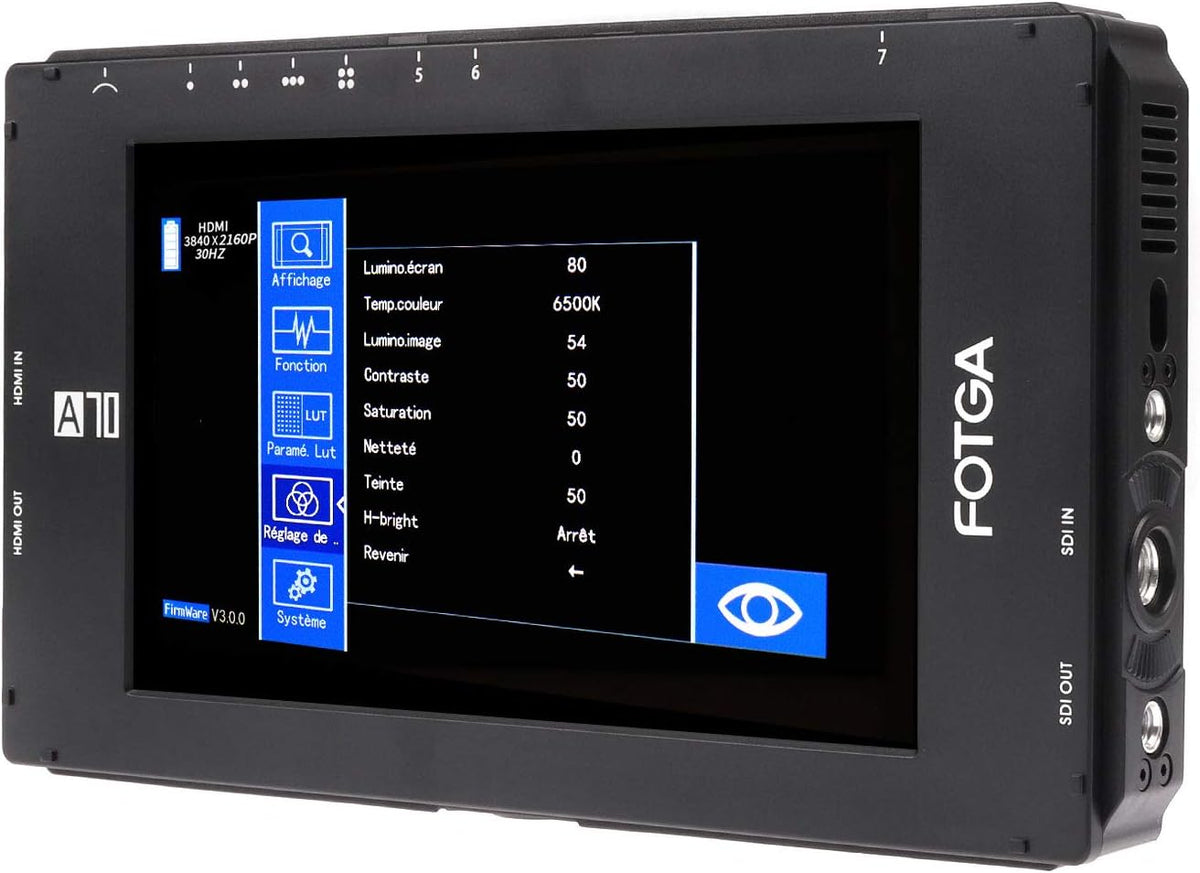

This A70 series field monitor is special designed for all cameras with good features:Histogram,peaking filter,false colors,zebra exposure,FHD,embedded audio,pixel-to-pixel,check field,image flip,anamorphic,image freeze,zoom-in,etc.
Multiple connectors make it able to work with more accessories at the same time
Multiple top buttons for quick and easy operation.The correponding function of buttons can be customized according to your need.
A smooth wheel button for a quick choose and settings.

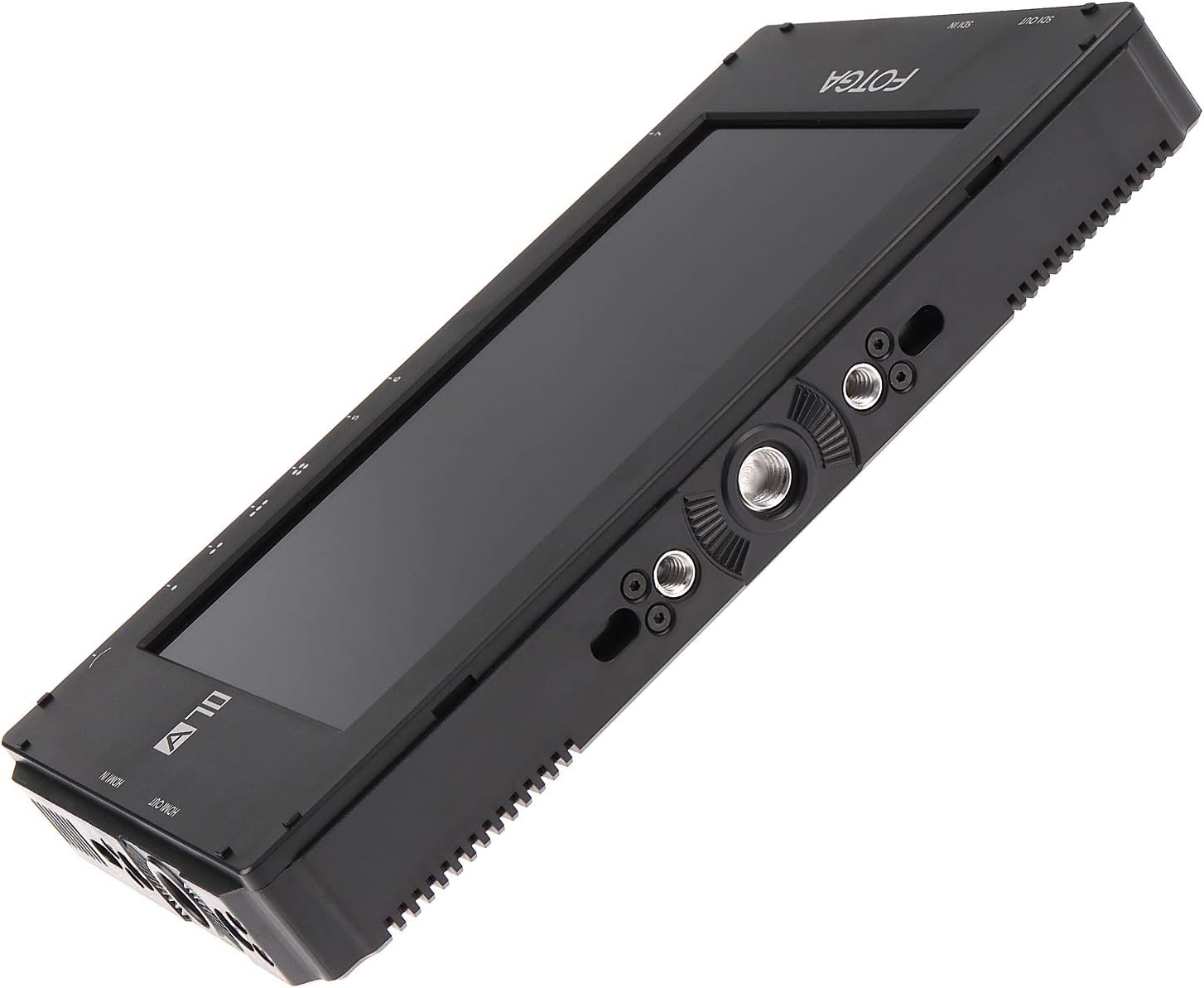

Multiple connectors by side: 3 x Standard 3/8' mount ,and 4 x 1/4' screw mount.There includes 3 x 3/8'-M6 adapter,1 x 3/8'-1/4' adapter.You can mount different accessories on it.
There is also include a cold shoe adapter for holding extra monitor or some other device.
Uninterrupted Power Supply (AC power & Dual NP-F batteries)
Supports dual NP-F battery ( NP-F,NP-FM/QM batteries) for power at the same time,which will greatly extend your battery working time.You can also use an adapter plate for LP-E6 battery (need to buy separately,then you can use LP-E6 battery alone,you can also use a NP-P battery and a LP-E6 battery at the same time.
There is Battery output for power your camera and monitor at same time.But camera can get power at the same time only when you use NP-F series or LP-E6 battery (s) or through DC coupler.it can not be powered when use AC power cable.
Screen Size: 7”
Resolution: 1920x1080
Brightness: 450cd/m²
Contrast Ratio: 1200:1
Viewing Angle: 178°
Input Voltage: DC 7-18V
Size: 217x125x24.8 (mm)
Net Weight: About 380g
USB firmware upgrade
Standard 4K HDMI Input/Output

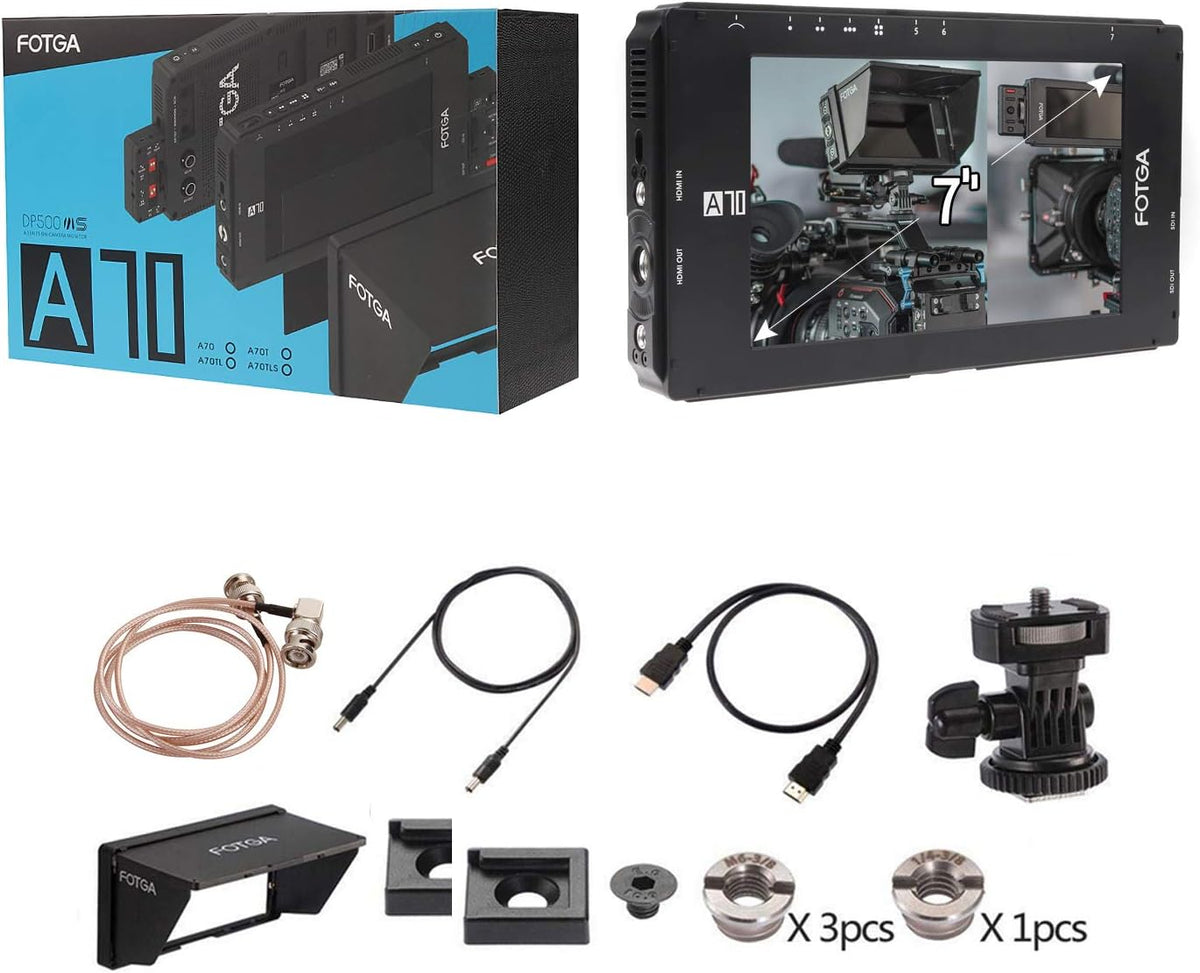

Package includes:
1 x A70 monitor
1 x hot shoe mount adapter
1 x sunshade hood
1 x cold shoe adapter
1 x HDMI cable
1 x DC power cable
1 x 3/8'-1/4' adapter
3 x 3/8”-M6 adapter
